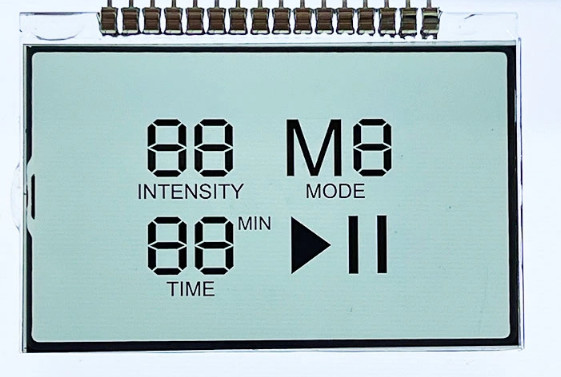

RoHS SGS 16 Pins Segment LCD Display Positive LCD Display 35*24mm

    Buy cheap RoHS SGS 16 Pins Segment LCD Display Positive LCD Display 35*24mm from wholesalers

    Buy cheap RoHS SGS 16 Pins Segment LCD Display Positive LCD Display 35*24mm from wholesalers
    • Buy cheap RoHS SGS 16 Pins Segment LCD Display Positive LCD Display 35*24mm from wholesalers
    • Buy cheap RoHS SGS 16 Pins Segment LCD Display Positive LCD Display 35*24mm from wholesalers

    RoHS SGS 16 Pins Segment LCD Display Positive LCD Display 35*24mm

    Ask Lasest Price
    Brand Name : gena
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 50000PCS/Day
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    RoHS SGS 16 Pins Segment LCD Display Positive LCD Display 35*24mm

    16 Pin Positive Transmissive 6 O′ Clock Tn Segment LCD for Instrument Display


    Product Parameters


    LCD TypeSegment LCD Display
    Display TypePositive
    Display ModeTransmissive
    View Angle6 o'clock
    Active Area35*24mm
    Driving ConditionVDD 3 V
    Duty 1/4
    Bias 1/3
    Connector16 PINS
    Display TechnologyTN
    Operating Temperature-20ºC-+70ºC
    Storage Temperature-30ºC-+80ºC
    SpecificationRoHS SGS




    Applications


    Segment LCD Display can be widely used in various industries such as,instruments and metersoffice equipments,

    industrial control,household appliancecommunicationsmedical treatment,bank display terminals

    digital products,navigation and so on.


    We offers a wide range of standard Character LCD modules for customers' application. Our LCD character displays are available from 8x2, 12x2, 16x1, 16x2, 16x4, 20x2, 20x4, 24x2 through to 40x4 formats with 5x8 dot matrix characters. The LCD panel technologies include TN, STN, FSTN, FFSTN types and also with polarizer positive mode and negative mode options. There are different LED backlights are available in various colors including yellow/green, white, red, blue, green, amber, and RGB LEDs as well as no backlight option.


    Meanwhile, here are specific advantages you get when partnering with our company.


    Customizable options

    Low minimum order quantity (MOQ)

    Faster leading time from date of order confirmation

    Display modules covered by a 3-year warranty

    A responsive customer service team

    Free dedicated software for creating graphical user interfaces (TOOLS 2019)

    Highly reputable with several certifications such as ISO 9001
